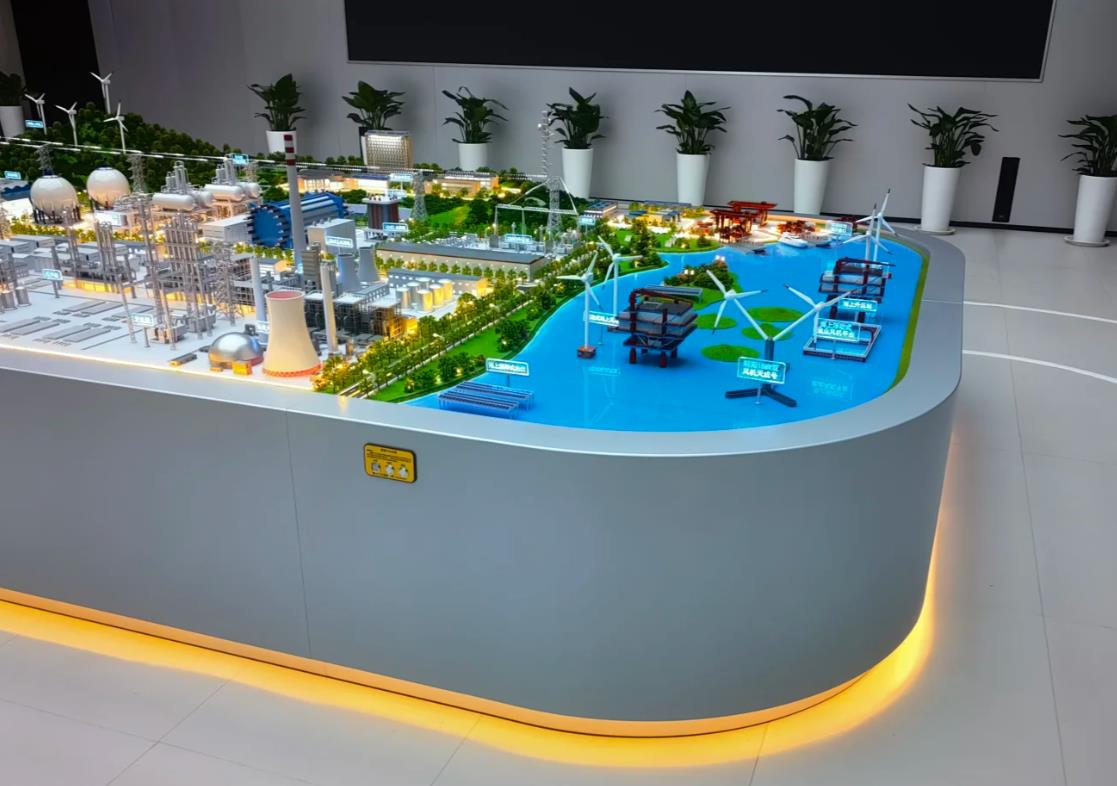

New Energy Model Production Case: Miniature Landscape of Wind Power Plant
1、 Production process and flow design
Main structure construction
The fan blades are carved from lightweight oak board and CNC cutting is used to ensure precise aerodynamic curves. The tower is reinforced with PVC pipes nested with copper wires, and the bottom is filled with gypsum to simulate a real weight distribution system. The base is shaped with high-density foam to carve out the undulating terrain of mountains and strengthen the site features.
Dynamic System Integration
Blade rotation: Combining micro bearings with magnetic levitation technology to achieve low resistance and uniform speed rotation.
Lighting system: Fiber optic bundles are embedded inside the tower, and the top LED simulates the flashing effect of warning lights.
Environmental interaction: The base hides a micro motor, which drives the thin gauze to simulate the flow of clouds and mist, enhancing the vividness of the scene.
2、 Innovative Application of Materials
Blade material: aviation grade lightweight wood combined with carbon fiber patch, balancing strength and detail performance.
Tower processing: Aluminum alloy pipes are anodized and then aged, or simulated steel cables are wrapped with galvanized iron wire.
Ground system: resin mixed with quartz sand pouring, dry sweeping technique simulates wind erosion marks and vegetation coverage.
Special effect materials:
Wind indicator: Transparent PET film carved wind vane, suspended and installed on the top of the tower.
Light and shadow effect: Apply UV curing adhesive to the edge of the blade to simulate the glass texture of sunlight refraction.
3、 Post processing and coloring techniques
Base treatment
After spraying matte primer on the entire model, it is partially polished with 000 steel wool to highlight metal wear and industrial texture. The welding seam is reinforced with enamel paint dry sweep to enhance the three-dimensional effect, and the key bolts are simulated with magnetic powder for corrosion.
color system
Main color tone: Industrial white (70%) as the main color, paired with safety orange (20%) and warning red (10%), in compliance with new energy facility regulations.
Environmental integration: The chassis is rendered in layers using acrylic paint, simulating sky gradients and ground shadows.
Detail depiction: The edges of the leaves are decorated with fluorescent green to simulate the effect of reflective coating.
scene fusion
The surrounding vegetation is made of miniature moss and model trees, which are fixed by aerosol spraying. The wind indicator is made of transparent acrylic carving and suspended at the top of the tower to enhance dynamic realism.
4、 Key points of restoration control
Accurate proportion: Strictly refer to the fan CAD drawings and on-site photos to ensure accurate size of each component.
Dynamic coordination: The rotation speed of the blades is synchronized with the flicker of the light, simulating the real working state.
Environmental adaptation: The terrain and vegetation layout should match the local climate characteristics to enhance the credibility of the scene.
