Highly realistic models of industrial precision equipment are used for exhibition, display, or teaching and training
The production process of industrial equipment models has an overall restoration rate of up to 90%. Whether it is the industrial design of the external casing or the realistic simulation of the internal transmission, hydraulic, and control systems, it reflects a high level of production standards.
Design and disassembly stage: Based on the CAD drawings or physical photos provided by the customer, 3D modeling and structural disassembly are carried out to clarify the dimensions, connection methods, and motion logic of each component. At this stage, it is necessary to focus on confirming the layout of the core functional areas of the equipment, such as the transmission system, hydraulic station, control cabinet, material conveying channel, etc., to ensure that the actual process flow of the equipment can still be accurately reproduced after miniaturization.
Material preparation and cutting: The main structure is made of aluminum alloy profiles and stainless steel plates, which are processed through CNC precision machining and laser cutting to ensure the dimensional accuracy and assembly fit of the components. The motor casing, protective cover and other irregular parts are injection molded with ABS engineering plastic, and then manually polished and trimmed to ensure a smooth and burr free surface.
Component processing and assembly: After rust prevention treatment, all metal components are sprayed with industrial matte gray paint to restore the factory texture of the equipment; The blue power unit uses high saturation environmentally friendly paint to highlight the visual focus. The internal transmission gears, pulleys, hydraulic cylinders, etc. are all independently manufactured, polished and deburred, and assembled step by step in order to ensure smooth and interference free operation of moving parts.
Internal system simulation: The wiring in the control cabinet area uses micro wire harnesses of different colors, and the terminal blocks and relays are made of etched pieces to simulate real electrical control logic. The hydraulic pipeline is connected with transparent hoses and metal joints, allowing clear observation of fluid flow direction. Some key nodes are embedded with LED light sources for dynamic demonstration of equipment operation status.
Shell and detail treatment: The equipment shell has undergone multiple rounds of polishing and painting, with no welding marks or deformation on the surface, restoring the corrosion and wear resistance characteristics of industrial equipment. The transparent acrylic side panel has undergone anti fog treatment and will not turn yellow or scratch after long-term use, ensuring that the internal structure is clear and visible. The safety warning lines, equipment nameplates, operation buttons, and other details are all silk screened or coated in real proportion to enhance realism.

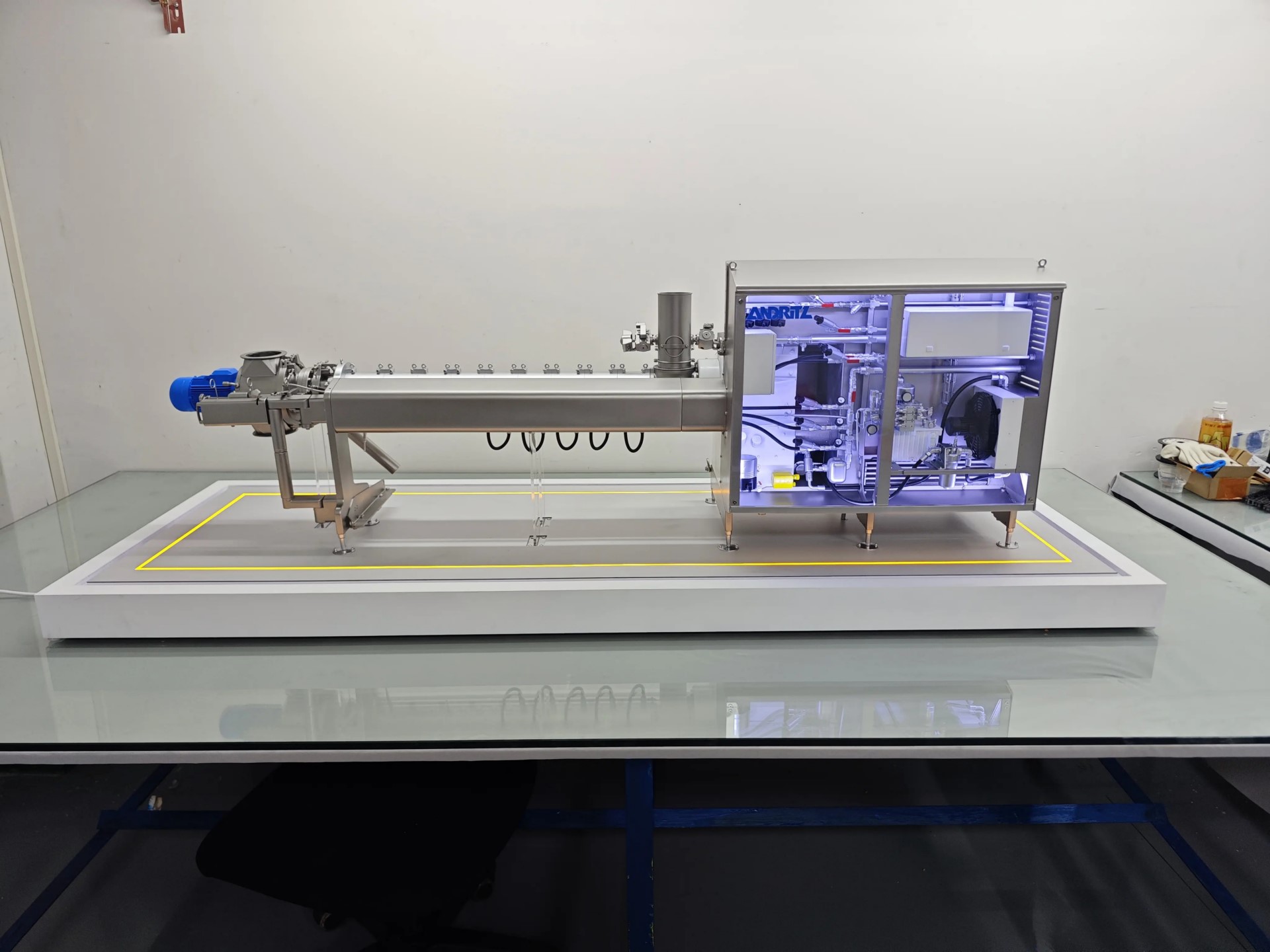

Overall debugging and lighting integration: The model base is made of thickened high-density board covered with gray anti-static floor film, and the edges are marked with yellow warning lines to indicate safe areas. The bottom is embedded with LED light strips, which can switch between white and blue light modes, highlighting the internal structure and operating status of the device. Power on the whole machine for debugging, check the synchronization of various moving parts and lighting effects to ensure smooth and natural demonstration.
This model is suitable for enterprise technology exchange, customer demonstrations, or internal factory training, and is a high-end industrial display tool that integrates functionality, education, and visual impact.
