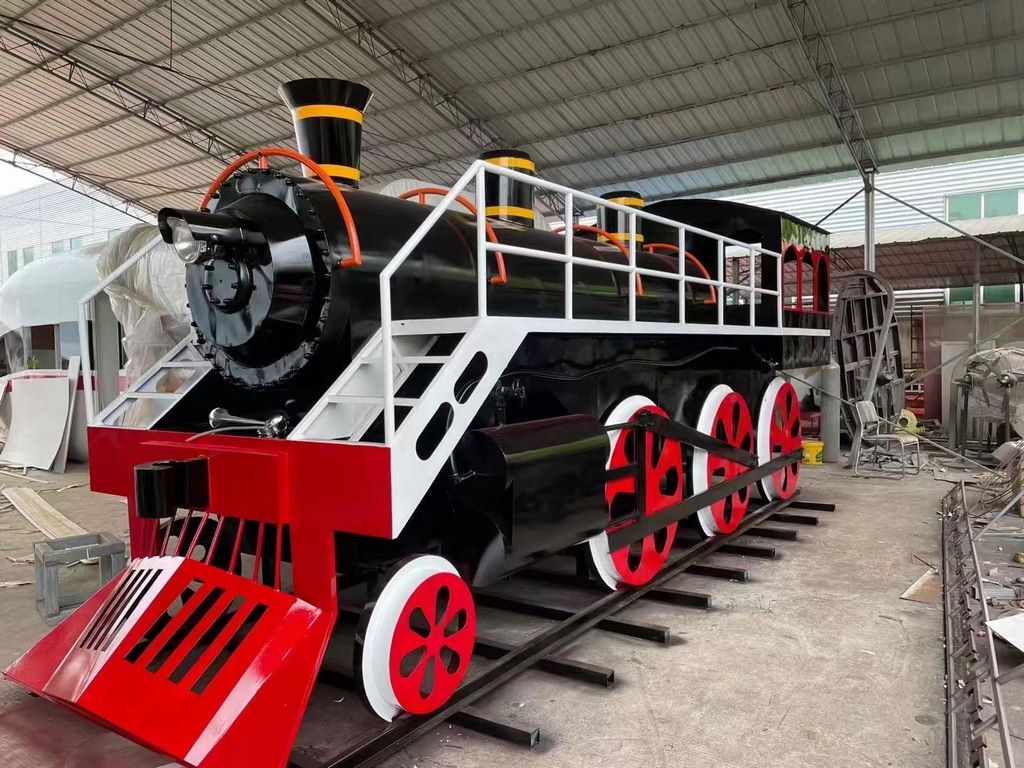

Case Study of Vintage Steam Train Model Making: A Craft Journey from Drawing to 90% Restoration
1、 Material selection: Accurately matching retro texture
When making a vintage steam train model, priority should be given to selecting materials that can restore the historical texture:
Main framework: High strength steel (such as Q235 steel) is used to balance structural stability and post-processing, ensuring the model's load-bearing capacity and modeling accuracy.
Detail components: Key parts such as boilers, chimneys, and wheels are preferred to be made of cast iron or alloy materials, simulating the heavy texture of old-fashioned steam locomotives; Lightweight components such as car windows and armrests are made of aluminum alloy, balancing lightness and delicacy.
Decorative elements: The yellow and black stripes on the chimney and the hollow design of the front ventilation opening are all achieved through metal stamping and welding processes, allowing retro details to take root from the material level.
2、 Production process: Step by step restoration of classic shapes
The core of model restoration lies in the precise replication of the iconic elements of the "retro steam locomotive", and the process needs to be promoted step by step:
1. Structural construction: Framework finalization
Based on the blueprint, the main frame of the train (including the locomotive, boiler, cockpit, wheel assembly, and other core modules) is first welded. During the process, the size ratio is strictly controlled, such as the rounded curvature of the boiler, the diameter and spacing of the wheels. It is necessary to repeatedly compare historical steam locomotive photos to ensure that the frame structure is highly compatible with the classic design.
2. Detail carving: Restoring the characteristics of the times
Boiler and chimney: The boiler is welded with multiple layers of steel plates, and a smooth surface is shaped through grinding and polishing processes; The chimney is replicated with the classic color scheme of yellow and black stripes through segmented welding and spray coating technology, while the top is rounded to restore the recognition of old-fashioned locomotives.
Wheels and frame: The wheels are made of cast iron and processed by a lathe to ensure the symmetry of the hub and spokes; The metal railings and steps of the frame are precision welded and polished, making every weld hidden in detail, restoring the rough and exquisite retro industrial style.
Front end and ventilation openings: The red front face of the front end is formed by sheet metal stamping, and the hollow design of the ventilation openings is accurately presented through laser cutting, allowing the retro steam locomotive's "breathing feeling" to be replicated on the model.
3、 Post processing: "soul injection" of color and texture
Materials and structure are the "skeleton" of the model, and post-processing is the key to making the model "live":
1. Spray coating process: color reproduction
Using multi-layer spraying technology, first apply a base coat to ensure adhesion, then spray the main colors (such as black and red), and finally apply a clear protective layer. During the process, it is necessary to repeatedly compare the color styles of historical steam locomotives, such as the deep black of the boiler and the bright red of the wheels. Through color matching and repainting, the color saturation is matched with the retro texture, allowing the model to present the vintage feel of the old locomotive under light and shadow.
2. Detail polishing: texture upgrade
Perform metal wire drawing and aging treatment on easily worn parts such as boiler surfaces and wheel edges, simulating the usage traces of old-fashioned locomotives;
Polish parts such as car windows and armrests to balance metallic luster with vintage texture;
Finally, through lighting testing, adjust the color brightness levels to enable the model to restore the visual memory of historical steam locomotives in different lighting environments.
