Case Study of Engine Equipment Model:
Perfect Integration of Exquisite Craftsmanship and High-Quality Materials
Project Background
In today's industrial landscape, where efficiency, environmental protection, and sustainable development are paramount, the engine stands as the heart of power. Each innovation in its design and manufacturing technology propels the industry forward. To delve deeper into the engine's internal structure, working principle, and innovative design, our model factory has meticulously crafted an engine equipment model. This masterpiece not only mirrors the engine's actual structure but also showcases the allure and beauty of engine technology through exceptional craftsmanship and premium materials.

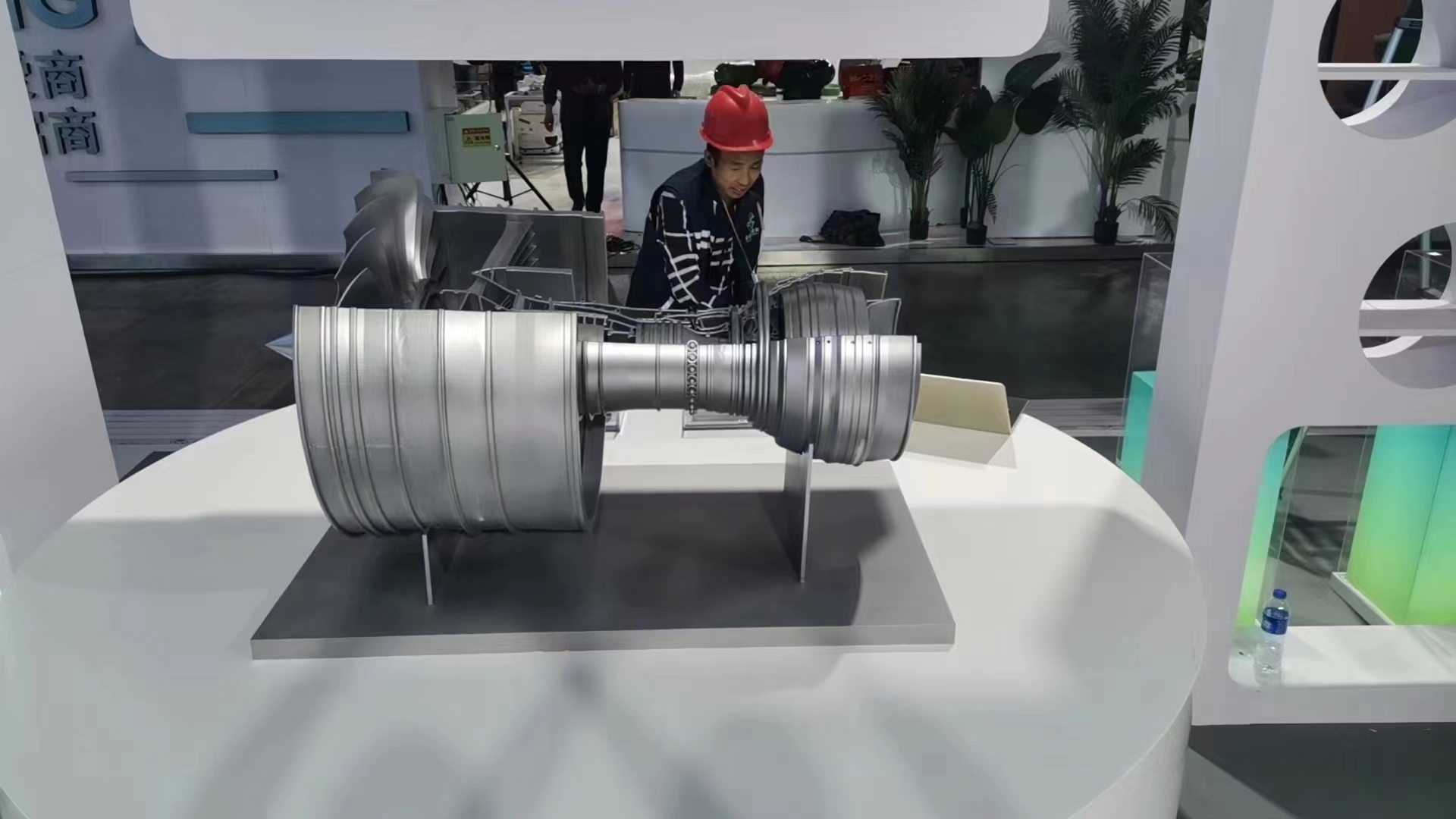

Model Overview
Based on a high-performance engine from a renowned brand, our model is precisely scaled down, retaining all crucial components and intricate details of the prototype. Portable and display-friendly, it boasts a clear overall structure—from the intake system to the combustion chamber and the exhaust system. Each link is lifelike, offering an instant appreciation of the engine's complex and exquisite mechanical structure.
Core Process Highlights
Laser Cutting Technology: High-precision laser cutting machines ensure dimensional accuracy and smooth edges, perfectly capturing the fine contours of engine components.
Precision CNC Machining: Advanced CNC machine tools deliver exquisite carving and drilling, especially for complex components like cylinder heads and crankcases, achieving unparalleled machining accuracy and detail.
Metal Casting and Electroplating: Key components, such as pistons and connecting rods, are cast from high-quality alloy materials and treated with electroplating, enhancing durability and adding a metallic sheen.
Transparent Material Application: Transparent or semi-
transparent polymer materials reveal the internal oil and air passages, boosting educational value.Manual Assembly and Debugging: Experienced technicians manually assemble all components, followed by multiple debugging sessions for seamless operation and realistic dynamic display.
High-Quality Material Selection
Main Structural Materials: Combining high-strength ABS plastic and aluminum alloy composite materials ensures lightweight portability and robust stability.
Transparent Component Material: Made from high-transparency polycarbonate (PC), it resists impact and heat, ensuring long-term display without deformation or aging.
Metal Decorative Parts: Chrome- or nickel-plated stainless steel adds a premium texture to key parts like piston tops and valves.
Case Presentation Effect
Since its debut, the engine equipment model has garnered widespread acclaim within and beyond the industry. Whether for teaching demonstrations, product exhibitions, or corporate exhibition hall décor, it captivates attention as a focal point. The model conveys the engine's working principle and technical characteristics accurately while sparking audience interest and curiosity in technology and engineering through its artistic presentation.
Conclusion
Our model factory is dedicated to merging advanced manufacturing processes with high-quality materials to create practical, aesthetically pleasing, and educational industrial models for our customers. The success of this engine equipment model underscores our professional prowess and innovative spirit. Moving forward, we will continue exploring more possibilities, bringing surprises and breakthroughs to the industrial modeling field.
